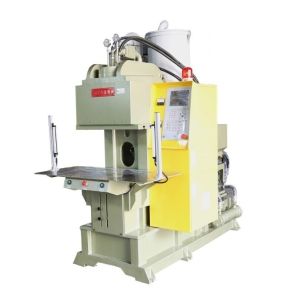

Plug Power Cord Moulding Machine Vertical Plastic Injection Molding Machine 55T

    Buy cheap Plug Power Cord Moulding Machine Vertical Plastic Injection Molding Machine 55T from wholesalers

    Buy cheap Plug Power Cord Moulding Machine Vertical Plastic Injection Molding Machine 55T from wholesalers
    • Buy cheap Plug Power Cord Moulding Machine Vertical Plastic Injection Molding Machine 55T from wholesalers

    Plug Power Cord Moulding Machine Vertical Plastic Injection Molding Machine 55T

    Ask Lasest Price
    Brand Name : JINTONG
    Model Number : JC-550
    Price : USD17000--20000/PC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20PCS/MONTH
    Delivery Time : 60 days
    Certification : CE ISO
    • Product Details
    • Company Profile

    Plug Power Cord Moulding Machine Vertical Plastic Injection Molding Machine 55T

    Plug Power Cord Vertical Plastic Injection Molding Machine Factory 55T


    2/3 pin Plug vertical injection molding machine JC-550 in China Dongguan

    Clamping Force: 55T

    Injection Weight: 103-177g



    Vertical clamping, horizontal injection
    3 or 4 section temperature controller
    Without column, easy to operation
    Fixed low die and movable up die to avoid insert parts shift
    Low pressure opening mold unit to protect mold safty
    Alternative silde table or rotary table


     ModelUNITJC-550
    injection systemScrew Diametermm38 42 50
    Injection Pressurekg/cm21454 1190 840
    Theoretical Shot Volumecm3158 194 274
    Max Shot Weight PVCg172 212 300
    Injection Ratecm3/sec68 83 115
    Screw Strokemm140
    Screw Speedrpm0-175
    Nozzle Contact Forcetons3.9
    Nozzle Strokemm130
    Number of Temperature Control-3
    Hopper CapacityL25
    clamping systemClamping Forcetons55
    Opening Forcetons9.3
    Platen Sizemm420*270
    Distance Between Tie Barmm-
    Min Mold Heightmm175
    Opening Strokemm200
    Max Open Daylightmm375
    Ejector Forcetons1.3
    Ejector Strokemm75
    oil pressure systemMax Hydraulic Pressurekg/cm2140
    Pump OutputL/min43
    Oil Reservior CapacityL200
    Cooling Water Consumption/hr800-1000
    Pump Moter PowerKW7.5
    Barrel Heating Powerkw5.5
    Total Powerkw13
    otherMachine Weighttons3.1
    Machine Dimensionm2.8*1.05*2.05
