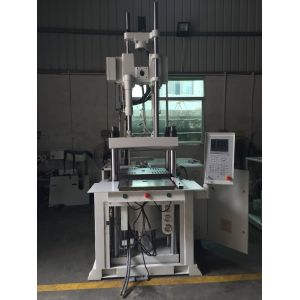

45T VERTICAL Plastic Injection Molding Machine For Precise And Accurate Production

Product Description

Single slide table vertical plastic injection molding machine 45T JTT-450D

Clamping Force: 45T

Max Injection Weight: 105g

Vertical clamping, vertical injection
D—single slide table(one up die and one low die)
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line

Main Features

With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.

Suitable for all kinds of insert molding.

Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.

Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.

Electric protection device can not happen wrong action and maintain the operators safety.

Auto life injection base, it is easy for replacement of material and mold.

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

The predecessor of Dongguan Jintong Plastic Machinery CO., LTD is Shenzhen Tong Plastic Machinery CO., LTD Today.
Since the foundation of 2000, Jintong have been focusing on vertical injection molding machine, low pressure injection molding machine and so on. The design, production and assembly of all machines confirm with regulations of European Association of Plastic and Rubber machinery Manufacturers.
Jintong machinery aim to improve customers competitive strength by increasing productivity and product quality.
Jintong company have sophisticated technology to develop and design machines with vatiety applications, as diamond wire coating, USB connector, plug, PCB board, glass encapsulation, automobile sunroof foaming, sintered alloy, ceramic materials, medical products and plastic goods with embedded metal.
Jintong machinery is one of manufacturerS with outstanding independent research for standard vertical injection molding machine, sliding vertical injection molding machine, rotary vertical injection molding machine. Jintong machinery have proprietary intellectual property rights, especially 3-color and 4-color vertical injection molding machines with clamping force from 85T to 300T are initiated in China. The biggest clamping force of Jintong machines reaches 2000T.
Based on strong and durable quality, Jintong machines export far to Southeast Asia, Europe, South America and so on.
Jintong machinery keep business philosophy to pay highly attention to technology and quality, and make trade policy for sincerity and perfect service. Jintong machinery establish a set of systemic and standard service process to start 24 hour response institution and solve customers problem at any time.
